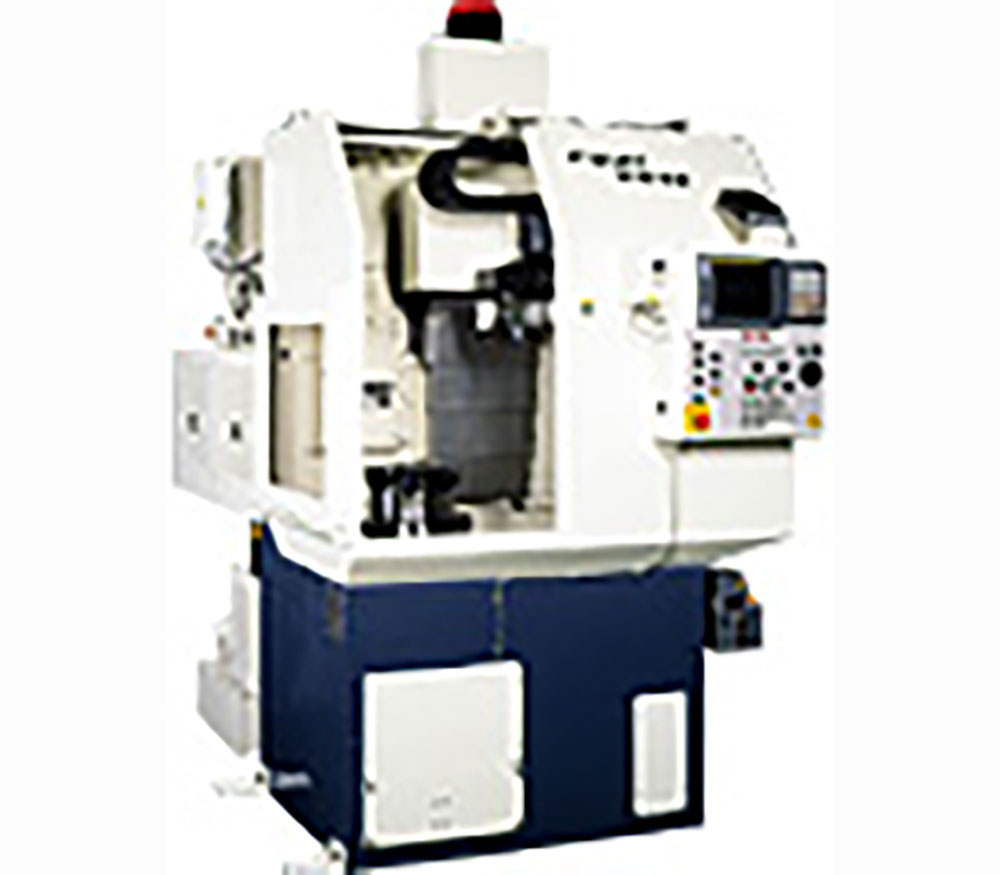

VN-50T Hard Turning Lathe

Increase profits while decreasing machine floor space with the VN-50T Hard Turning Lathe with built-in automation and small footprint. Handles large and heavy parts with ease, up to 16" in diameter.

  • Choice of built-in FUJI single LXXX or double LXXX hand robot
  • Powerful 60-hp/45-kW spindle drive system
  • Rigid 8-position turret with precise curvic coupling for accuracy
  • Small footprint of 73"x71"
  • FANUC 18i-TA Control
  • Spindle Diameter - mm (inch) 150 (5.9)
    Spindle Speed - rpm 2000
    Spindle Motor - kW (hp) 45/37 (60/50)
    Slide stroke: X-axis - mm (inch) 355 (14)
    Slide stroke: Z-axis - mm (inch) 500 (19.7)
    Turret 8-position
    Carrying capacity - kg (lbs) 100 (200)
    FUJI Robot FUJI
  • Work length - mm (inch) N/A
    Tailstock N/A
    • Specifications are subject to change without notice.
    • Larger capacity also available. Consult Fuji on your application.
