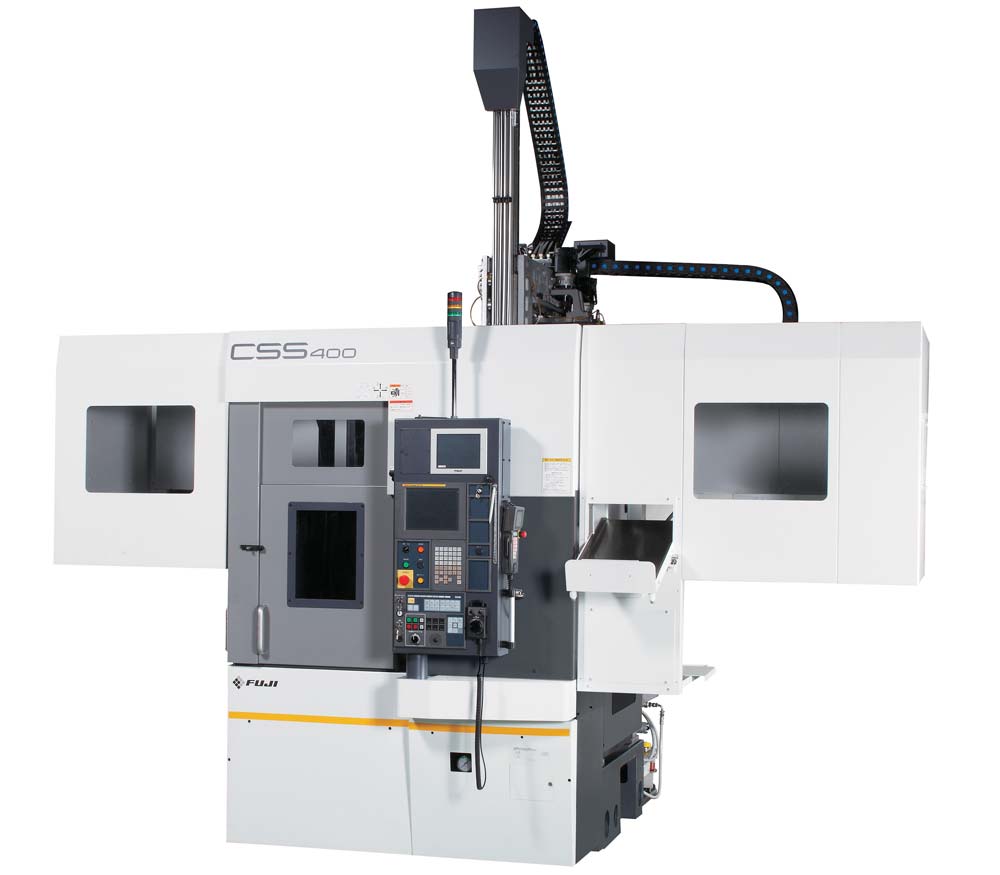

CSS-400 Single Spindle Lathe

The CSS-400 Single Spindle Lathe is a front facing modular machine with 1 spindle, 1 turret and a gantry robot.

  • Reliable automated heavy parts loading - 300mm x 150mm (11.8 x 5.9 inch) and 15kg + 15kg capacity
  • 10" - 12" workholding
  • Quick and accurate automated turning and handling of complex parts reduces labor costs and increases productivity
  • Turret capable of achieving speed of 0.41 sec/index
  • Swivel control panel
  • Rear or optional side positioned discharge chip conveyor
  • Maintenance items are all conveniently located in one section of the machine
  • Recommended work size ΓΈ300 x 150 mm
    Spindle Diameter - mm 120
    Spindle Nose A2-8
    Spindle Bore - mm 67
    Spindle Speed - rpm Max. 2220
    Spindle Motor - kW 15 / 18.5
    Slide stroke: X-axis - mm 195
    Slide stroke: Z-axis - (ram traverse) - mm 315
    ATC Tool Storage 12
    Robot Controller MAX SP1
    Machine Size - mm 3715
    • Specifications are subject to change without notice.
    • Larger capacity also available. Consult Fuji on your application.
